Circuit |
Comments |
|

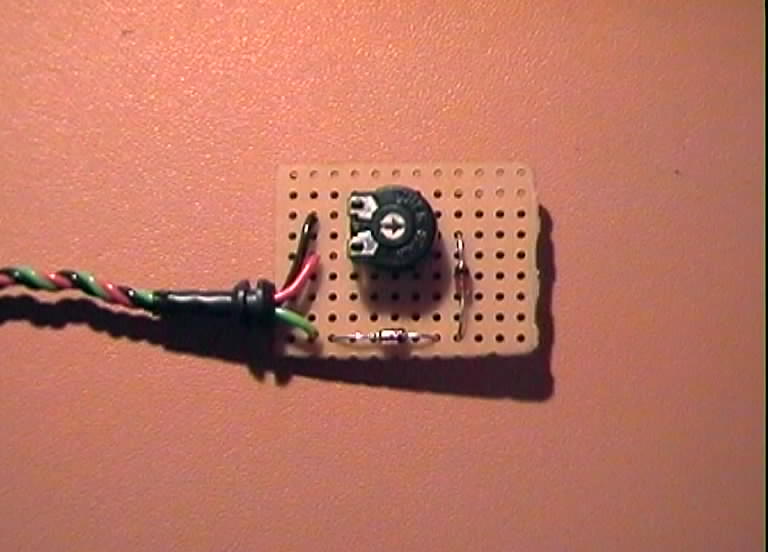

Adjustable FCD |
This adjustable FCD circuit is the one I have made and fitted to my car and is very simple and easy to make. Click the thumbs for bigger pictures ... Check out my FCD pages and links !
|
|

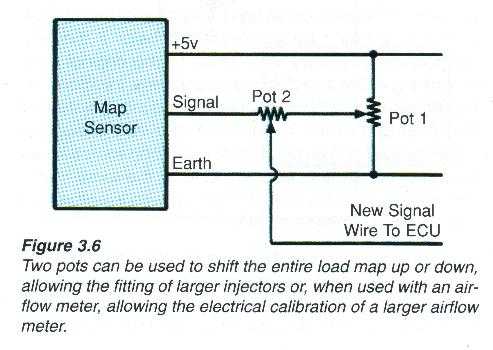

Load Map Adjuster |
This circuit can be used to adjust the entire load map up or down and can be used to modify either the MAP sensor or AFM outputs. Click the thumb for a bigger picture ... |
|

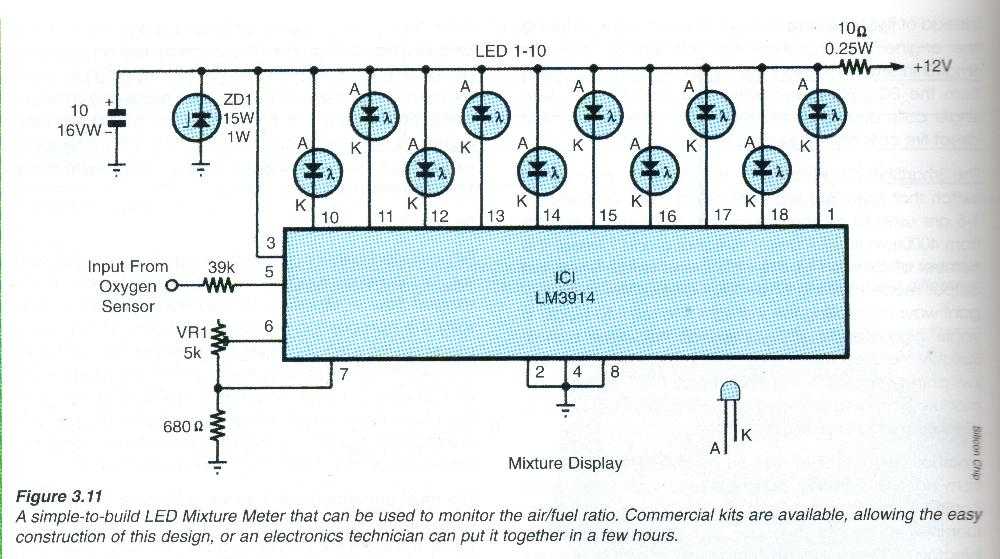

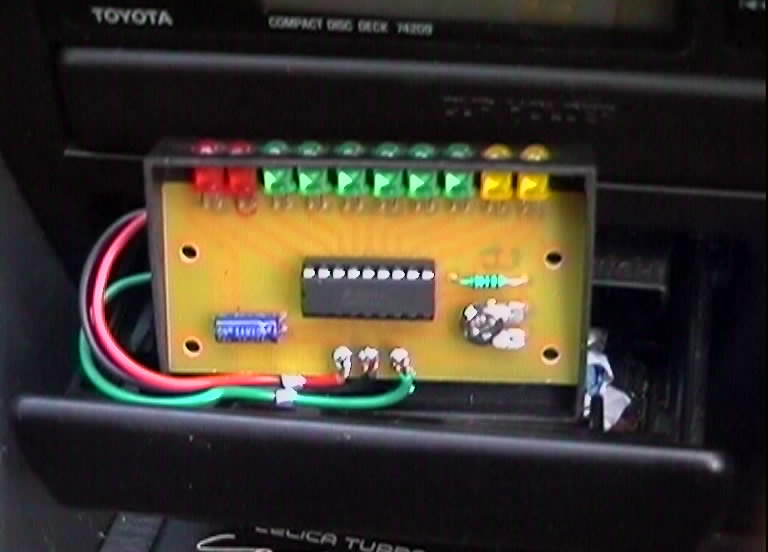

A/F Meter |
This circuit shows how to make an air/fuel meter which is regarded as essential when using an FCD.. Click the thumbs for bigger pictures ... |
|

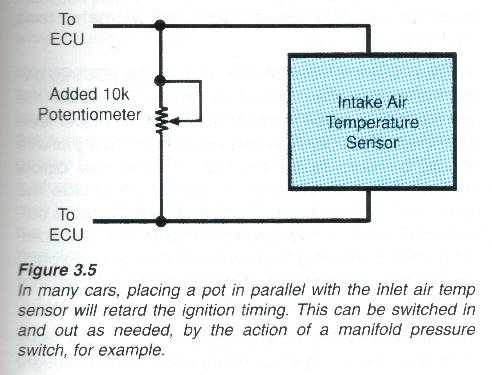

Ignition Retard |
This circuit can be used to adjust the ignition retard by altering the inlet air temperature sensor output. Click the thumb for a bigger picture ... |
|

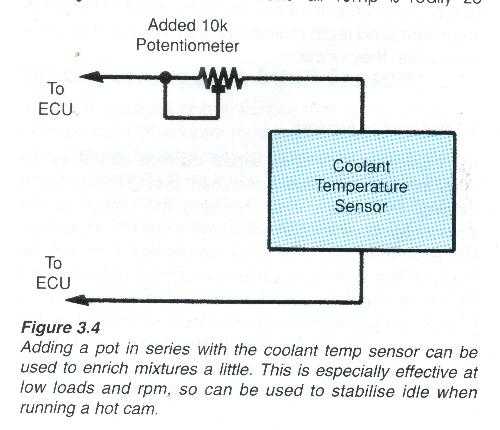

Mixture Enrichment |
This circuit can be used to adjust the air/fuel mixture by altering the engine coolant sensor output. Click the thumb for a bigger picture ... |
